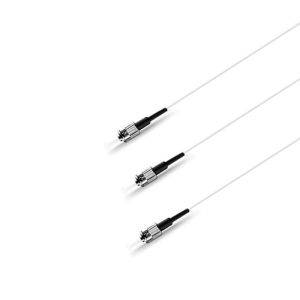

1M, 1.5m ST/UPC Simplex Fiber Optic Pigtail LSZH Jacket, 0.9mm
A fiber optic pigtail is a short, single-fiber cable with a factory-installed connector on one end and a bare, exposed fiber on the other. The name "pigtail" comes from this configuration—it looks like a short tail. The primary purpose of a pigtail is to terminate a fiber optic cable, either by splicing or connecting, in a controlled environment to provide a reliable, low-loss connection point.
Specification:
| CONNECTOR PERFORMANCE | |||
| LC, SC, ST and FC connectors | |||
|
| Multimode | Singlemode | |
| at 850 and 1300 nm | UPC at 1310 and 1550 nm | APC at 1310 and 1550 nm | |
| Typical | Typical | Typical | |
| Insertion Loss (dB) | 0.25 | 0.25 | 0.25 |
| Return Loss (dB) | - | 55 | 65 |
Structure:
1.1 Connectorized End: This end has a standard connector (like SC, LC, FC, ST, or MTP/MPO for multi-fiber) that is polished and precision-made in a factory. This ensures optimal performance.
1.2 Bare Fiber End: This is the "working" end. The fiber's buffer coating is stripped away, leaving the bare glass cladding and core exposed. This end is designed for splicing.
1.3 Cable Jacket: A short, ruggedized jacket (often 900µm or 2mm/3mm) protects the fiber. It is usually color-coded (orange for multimode, yellow for single-mode).
Application:
2.1 Fiber Distribution Frames / Patch Panels
2.2 Optical Network Terminals (ONTs) in FTTx installations
2.3 Splice Closures for aerial, underground, or building entry points
2.4 Data Center Main Distribution Areas (MDAs)
2.5 Telecom Central Offices
